Batch Nuts Frying Machine

The machine is mainly composed of airframe, frying pan, feeding cage, discharging system,it is widely used in peanut, spicy crisp, beans, corn, fried rice and other fried food .
The heating speed is fast and the temperature is automatically adjusted according to the set temperature.

Features:

The machine is all made of stainless steel 304 with acid resistance and heat resistance, automatic temperature control, gas alarm device, high degree of automation, with the characteristics of safety protection circuit, stable ignition, accurate control, strong anti-interference ability, long safe service life.

Heating method: coal-fired, diesel-fuel-fired, gas-fired, electric-fired.

Advantages:

Low loss, high efficiency and full automatic fryer can raise the temperature in short time, control the temperature automatically, feed and discharge automatically, and it also has a temper protection device.You can choose other two functions: automatic material and automatic mixing.

Parameters:

MODEL	F/Y400	F/Y 500	F/Y 600	F/Y 800
TEMP RANGE（℃）	40-250	40--250	40-250	40-250
DIMENSION（mm)	160014701500	180016601750	200018601750	220021001750
FRYING AREA(m²⁾	0.3	0.45	0.65	0.85
OUT PUT(P/B)（Kg/h）	400/120	60	600/200	800/250
VOLUME PER POT（Kg）	45--50	0.45	70--80	90-100
OIL CAPACITY（Kg）	400	0.55	800	900
MOTOR POWER（Kw）	0.37	380	0.75	0.75
VOLTAGE（V）	380/220	50	380/220	380/220
FREQUENCY（Hz）	50	9-12	50	50
GAS CONSUMPTION(Kg/h)	4--7	13-17	10--12	12-14
OIL CONSUMPTION (kg/h)	6--8Kg	7-9KG	8.5--10Kg	10-12
WEIGHT(kg)	450kg	600kg	800kg	1000kg

Application:

Mainly used for peanut, broad beans, corn flowers and other food fried, the finished food is crisp and sweet.

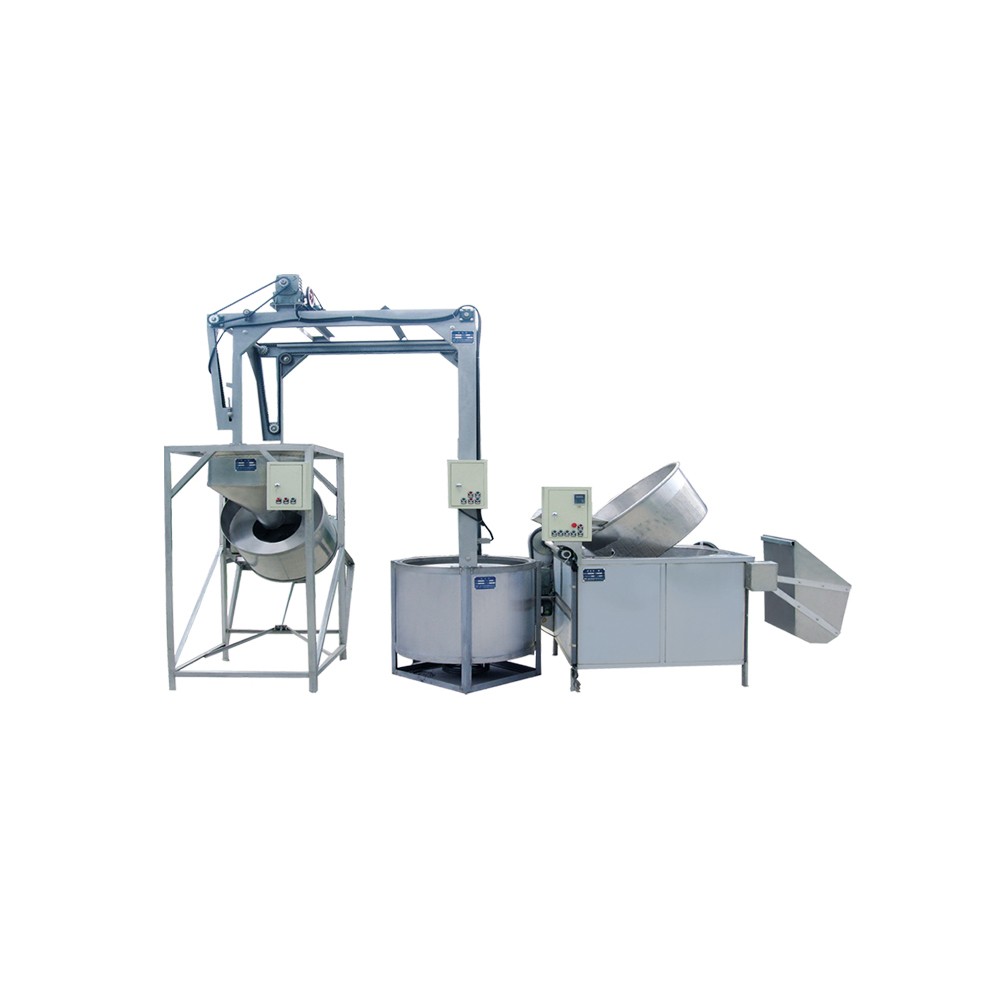

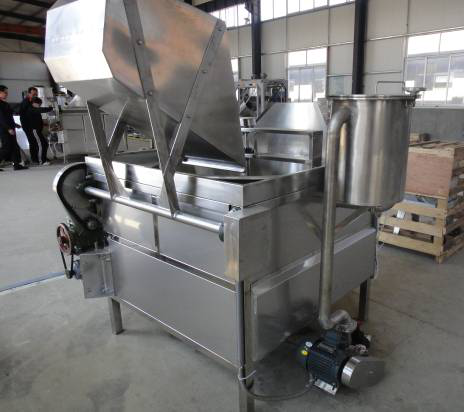

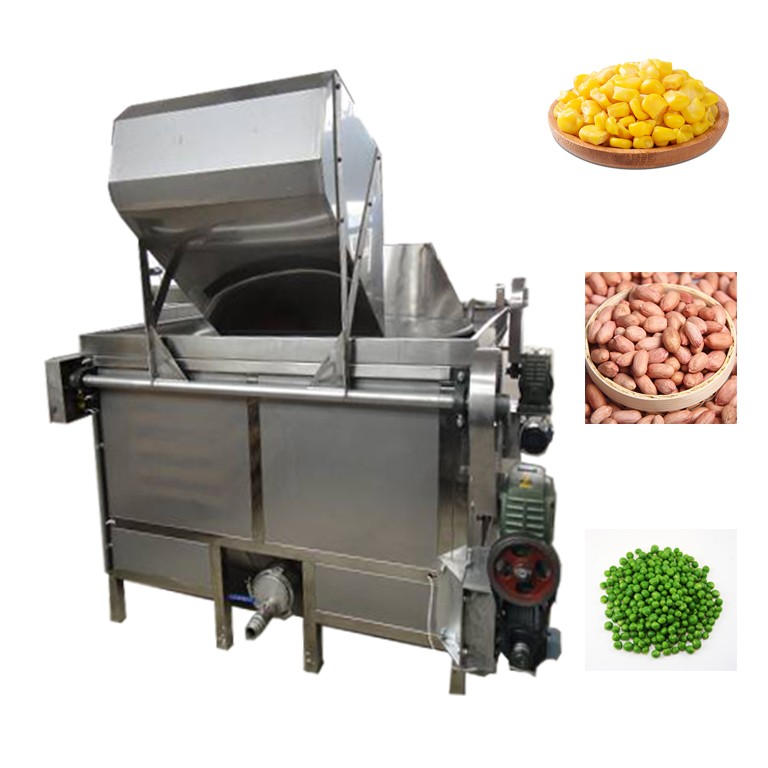

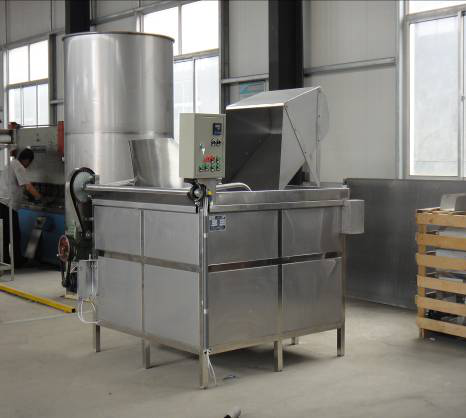

Machine photos:

Yantai Maoyuan Food Machinery Manufacturing Co., Ltd (short for Maoyuan) is our nuts processing machines' factory which located in Yantai, Shandong province. Trader Group is the sole overseas exporter of Maoyuan. Maoyuan was founded in 1993, it's a professional nuts processing machines enterprise integrating independent R&D, manufacturing, sales and after-sale service. The company has been commited to the R&D and innovation of nuts frying, roasting, peeling, wrapping and other processing technology and automatic nuts production lines. Kindly visit official website like below shows:
